| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 100 V AC 1 phase 120 V |
|---|---|

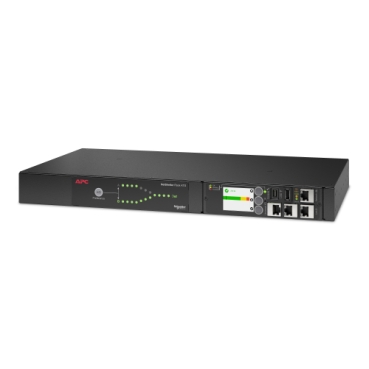

| product or component type | Automatic transfer switch |
| Main Output Voltage | 100 V AC 1 phase 120 V |
| Input Connection Type | NEMA 5-15P 12 A 2P + E |
| number of rack unit | 1U |
| cable length | 2.44 m |
| number of cables | 2 |
| provided equipment | Mounting hardware Rack mounting brackets Serial configuration cable |
| colour | Black |
|---|---|
| height | 4.4 cm |
| width | 43.2 cm |
| depth | 23.6 cm |
| net weight | 4.4 kg |
| mounting location | Front |
| mounting preference | No preference |
| mounting mode | Rack-mounted |
| mounting position | Horizontal |
| network frequency | 50/60 Hz |
|---|---|
| [In] rated current | 15 A |
| permissible voltage | 90…110 V |
| Max line current | 15 A |
| input current limits | 15 A |
| Load capacity | 1440 VA |
| Max current draw | 15 A |
|---|---|
| number of power socket outlets | 10 NEMA 5-15R 12 A 2P + E |
| protection type | Without circuit breaker |
| power cable length | 2.44 m |
| product certifications | PSE TÜV-C TÜV-NURTL VCCI class A |
|---|---|
| standards | FCC part 15 class A ICES-003 |
| ambient air temperature for operation | -5…45 °C |
|---|---|
| relative humidity | 5…95 % |
| operating altitude | 0…10000 ft |
| ambient air temperature for storage | -25…65 °C |
| storage Relative Humidity | 5…95 % |
| storage altitude | 0…15240 m |
| Unit Type of Package 1 | BOX |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 6.17 kg |
| Package 1 Height | 11.4 cm |
| Package 1 width | 60 cm |
| Package 1 Length | 35.6 cm |
| Warranty | 2 years repair or replace |
|---|
