| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 120 V AC 1 phase |
|---|---|

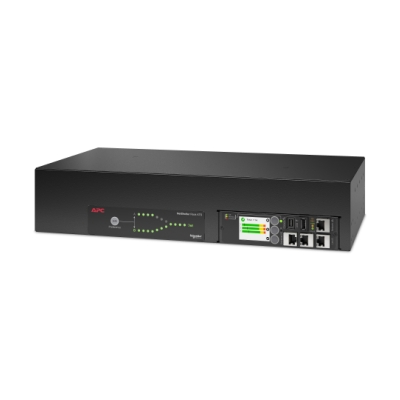

| product or component type | Automatic transfer switch |
| Main Output Voltage | 120 V AC 1 phase |
| Input Connection Type | NEMA L5-30P 24 A 2P + E |
| number of rack unit | 2U |
| cable length | 2.44 m |
| number of cables | 2 |
| provided equipment | Mounting hardware Rack mounting brackets Serial configuration cable |
| colour | Black |
|---|---|
| height | 8.8 cm |
| width | 43.2 cm |
| depth | 23.6 cm |
| net weight | 6.33 kg |
| mounting location | Front Rear |
| mounting preference | No preference |
| mounting mode | Rack-mounted |
| mounting position | Horizontal |
| network frequency | 50/60 Hz |
|---|---|
| [In] rated current | 30 A |
| permissible voltage | 108…132 V |
| Max line current | 30 A |
| input current limits | 30 A |
| Load capacity | 2880 VA |
| Max current draw | 30 A |
|---|---|
| number of power socket outlets | 16 NEMA 5-20R 16 A 2P + E |
| protection type | Circuit breaker |
| power cable length | 2.44 m |
| standards | EN 55022 class A FCC part 15 class A – |
|---|
| ambient air temperature for operation | -5…45 °C |
|---|---|
| relative humidity | 5…95 % |
| operating altitude | 0…10000 ft |
| ambient air temperature for storage | -25…65 °C |
| storage Relative Humidity | 5…95 % |
| storage altitude | 0…15240 m |
| Unit Type of Package 1 | BOX |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 8.82 kg |
| Package 1 Height | 21 cm |
| Package 1 width | 58.4 cm |
| Package 1 Length | 35.6 cm |
| Warranty | 2 years repair or replace |
|---|
