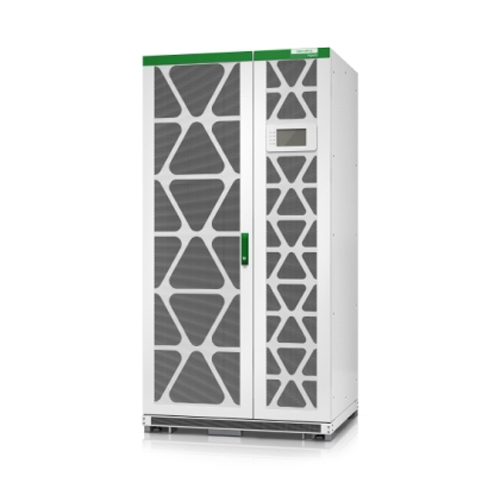

| Presentation | Easy-to-configure, easy-to-use and easy-to-service 600 kVA 3 phase UPS. With its exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs, the EcoStruxure Ready Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor, in your electrical room, or in your data center. Includes 5×8 start-up service. |
|---|---|
| Lead time | Special Order – Call for Quoted Lead Times |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| rated power in W | 600 kW |
| rated power in VA | 600 kVA |
| provided equipment | Dust filter Installation manual Start-up service |
| colour | White (RAL 9003) |
|---|---|
| height | 197 cm |
| width | 100 cm |
| depth | 85 cm |
| net weight | 720 kg |
| USB compatible | Yes |
| maximum input current | 1079 A |
|---|---|
| max short time withstand current | 35 kA |
| input harmonic distortion | Less than 3 % for full load |
| load power factor | 0.5 leading to 0.5 lagging without derating |
| Input Power Factor at Full Load | 0.99 |
| input voltage limits | 323…477 V |
| network frequency | 40…70 Hz |
| Maximum configurable power in VA | 600 kVA |
|---|---|
| Maximum configurable power in W | 600 kW |
| output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| output harmonic distortion | < 2% linear load and < 4% non-linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| product certifications | CE EAC RCM |
|---|---|
| standards | IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B |
| ambient air temperature for operation | 0…30 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0…4921 ft |
| ambient air temperature for storage | -25…55 °C |
| storage Relative Humidity | Non-condensing 0…95 % |
| storage altitude | 0.00…14999.82 m |
| acoustic level | 72 dB |
| heat dissipation | 126932 Btu/h |
| IP degree of protection | IP20 |
| Efficiency | View Efficiency Graph
action_new_window
|
|---|---|
| battery type | External battery system |
| battery voltage | +/- 216…+/- 300 V |
| maximum short-circuit current | 35 kA |
| discharge battery voltage | +/- 172.8…+/- 240 V |
| control panel | Touch screen LCD user interface |
|---|
| Package 1 Weight | 768 kg |
|---|---|
| Package 1 Height | 211.5 cm |
| Package 1 width | 101.5 cm |
| Package 1 Length | 120 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
