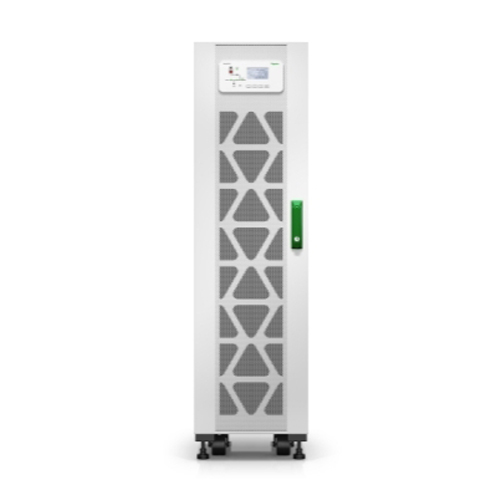

| Presentation | Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 208V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 3 internal 7Ah modular battery strings |
|---|---|
| Lead time | Usually Ships within 6 Weeks |
| Main Input Voltage | 208 V |
|---|---|
| Other Input Voltage | 200 V 220 V |
| Main Output Voltage | 208 V 3 phases |
| rated power in W | 20 kW |
| rated power in VA | 20 kVA |
| provided equipment | Dust filter Installation guide |
| colour | White (RAL 9003) |
|---|---|
| height | 140 cm |
| width | 50 cm |
| depth | 96.9 cm |
| net weight | 158 kg |
| USB compatible | Yes |
| maximum input current | 68 A |
|---|---|
| input harmonic distortion | Less than 4 % for full load |
| load power factor | From 0.9 leading to 1 lagging |
| Input Power Factor at Full Load | 0.99 |
| input voltage limits | 180…253 V |
| network frequency | 45…65 Hz |
| Maximum configurable power in VA | 20 kVA |
|---|---|
| Maximum configurable power in W | 20 kW |
| output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| output harmonic distortion | < 2% for 0 to 100% linear load and < 6% for full non-linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| additional information | UPS weight does not include battery weight. |
| product certifications | CE EAC RCM |
|---|---|
| standards | EN/IEC 62040-1-1 EN/IEC 62040-2 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0…3333 ft |
| ambient air temperature for storage | -15…40 °C |
| storage Relative Humidity | Non-condensing 0…95 % |
| storage altitude | 0.00…15240.00 m |
| acoustic level | 63 dB |
| heat dissipation | 1701 Btu/h |
| IP degree of protection | IP20 |
| Efficiency | View Efficiency Graph
action_new_window
|
|---|---|
| battery type | VRLA |
| battery voltage | +/- 120 V |
| maximum short-circuit current | 10 kA |
| number of battery filled slots | 0 |
| number of battery free slots | 2 |
| discharge battery voltage | +/- 96 V |
| Package 1 Weight | 195 kg |
|---|---|
| Package 1 Height | 164 cm |
| Package 1 width | 68.3 cm |
| Package 1 Length | 111.4 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
