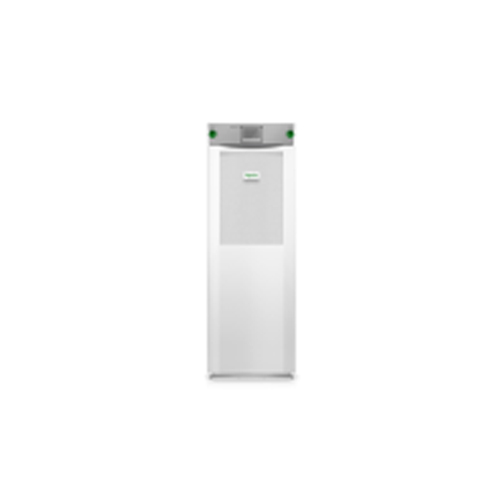

| Presentation | Highly efficient, easy-to-deploy 150kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5×8 start-up service. See the battery runtime chart for details. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| rated power in W | 150 kW |
| rated power in VA | 150 kVA |
| battery type | External battery system Li-Ion (Lithium-Ion) VRLA |
| provided equipment | Dust filter EcoStruxure IT ready (UPS) Installation guide Integrated network management Power modules ship installed Start-up service |
| bypass voltage tolerance | +/- 10 % |
|---|---|
| redundant | No |
| colour | White |
|---|---|
| height | 148.5 cm |
| width | 52.1 cm |
| depth | 84.7 cm |
| net weight | 290 kg |
| USB compatible | No |
| network frequency | 40…70 Hz |
|---|---|
| input voltage limits | 340…460 V 400 V |
| maximum input current | 270 A |
| max short time withstand current | 65 kA |
| input harmonic distortion | Less than 3 % for full load |
| load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Input Power Factor at Full Load | 0.99 |
| Maximum configurable power in W | 150 kW |
|---|---|
| output frequency | 50 Hz sync to mains 60 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised |
| crest factor | 2.5 |
| Wave type | Sine wave |
| output voltage tolerance | +/-1% after 50ms |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| bypass type | Built-in static bypass |
| Maximum configurable power in VA | 150 kVA |
| standards | IEC 62040-1-1 IEC 62040-2 IEC 60721-4-2 level 2M2 OSHPD UL 1778 5th edition |
|---|
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0…3333 ft |
| ambient air temperature for storage | -25…55 °C |
| storage Relative Humidity | Non-condensing 10…80 % |
| acoustic level | 65 dBA |
| heat dissipation | 16900 Btu/h |
| IP degree of protection | IP21 |
| Efficiency | View Efficiency Graph
action_new_window
|
|---|---|
| battery voltage | 480…576 V DC |
| discharge battery voltage | 384 V DC |
| max current discharge | 407 A |
| Battery power in VAH | 0 VAh runtime |
| extended runtime | 0 |
| free slots | 1 |
|---|---|
| control panel | Touch screen LCD user interface |
| alarm | Audible and visible alarms prioritized by severity |
| Package 1 Weight | 315 kg |
|---|---|
| Package 1 Height | 168 cm |
| Package 1 width | 64 cm |
| Package 1 Length | 99 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
