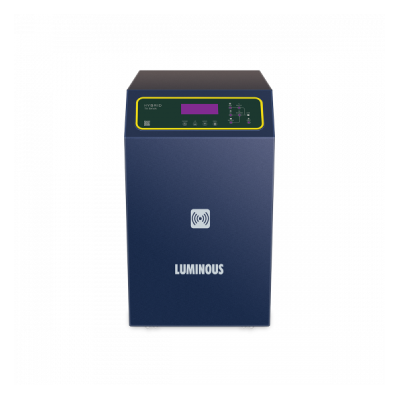

Hybrid Inverter TX 5 KVA

  • Operating Range – 180V-270V (single phase)
  • Max Supported Panel Power – 4000 Wp, Input Voltage Range (Vmp) – 65V-130V
  • Charge Controller – MPPT, Input Voltage Range (Voc)- 65V-165V
  • Nominal Battery Bank Voltage – 48V
  • BIS certified solar hybrid inverter
  • Real time remote monitoring
  • Anti-islanding protection to ensure safety of line workers
  • Inbuilt MPPT charge controller to maximize solar generation from solar panels
  • Inbuilt isolation transformer to protect from grid surges and noise
  • User selectable source priority: Choose source priority among SBG, SGB, Solar Only and Grid Feed mode
  • User friendly Informative LCD Display along with LED indications
  • In-built zero export function
  • Pure sine wave output for better performance & safety of connected loads
  • Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
Enquire Now
Categories: ,
  • Maximum Power Point Tracking
  • User selectable priority settings
  • Real time remote monitoring
  • Export excess power generated & also get backup
  • In-built Zero Export Function

Hybrid inverter range from Luminous is a combination of an on-grid and off-grid solar system which makes this inverter more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can easily work without grid, store electricity in batteries as well as export excess electricity generated to the grid.

MPPT Charge Controller

MPPTs to extract up to 30% more power from the panels, minimizing impact of shading and increasing efficiency.

Priority Setting

Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.

Model Hybrid Inverter TX 5 KVA
Range Name (Solar) Hybrid
VA Rating 5 KVA
Output Waveform Sine Wave
Warranty 24 months
Net weight (kg.) 64 Kg
No. of 12V Batteries in Series 4
Dimensions (L*B*H) 35.0*63.5*58.9 CM
Technology (Solar) With Battery
Maximum Power Voltage Vmp (V) 65V-130 V
Max. supported panel power (Wp) 4000 Wp
Nominal battery bank voltage 48 V
Input Voltage Range (Voc) 65 V-165 V
Customer Care Details Contact Customer Care Executive: Luminous Power Technologies Private Limited Plot No 150, Sector- 44, Gurugram, Haryana -122003 Ph.: 1800 103 3039 Email Id: Care@luminousindia.com Website: www.luminousindia.com
Manufactured By (A) Luminous Power Technologies Pvt. Ltd Village-Malpur, Baddi, District-Solan, Himachal Pradesh-173205 (B) Luminous Power Technologies Pvt. Ltd Kh No. 957, 958, 960, 961 & 975, Village-Dev Nagar, PO-Gagret, Tehsil-Amb, Himachal Pradesh-177201
Country of Manufacture India
Contents of Pack 1 N Inverter, 1 N Manual
