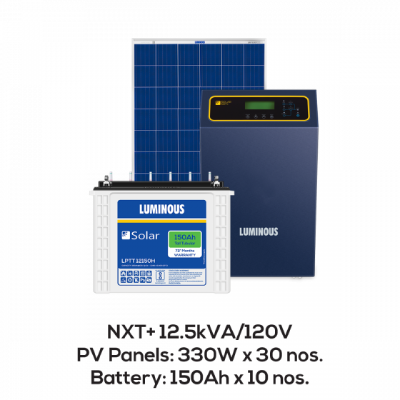

Home UPS / Inverter – NXT 12.5 kVA
- Rated AC power – 230V, 44A, Single phase
- Max Supported Panel Power – 10000Wp, Input Voltage Range (Vmp) – 150-240
- Charge Controller – MPPT, Input Voltage (Voc) 180-300 (extracts upto 30% more power from Panels)
- Nominal Battery Bank Voltage – 120V (Supports 10 Batteries).
Solar Battery – LPTT12150H
- 150 Ah Rated Capacity @ C10, 12V
- Warranty – 60* Months
- Tubular plate Technology
- No of Batteries in Combo – 10
Solar Panel – 330W / 24V
- Capacity – 330 W, 24V, Poly crystalline Panel
- Voltage: Voltage at Max Power (Vmax) – 38.03V, Open Circuit Voltage (Voc) – 45.53V
- Current: Current at Max Power (imax) – 8.68A, Short Circuit Current (Isc) – 9.22A
- 25 years performance warranty.
- No of Panels in the Combo – 30.
