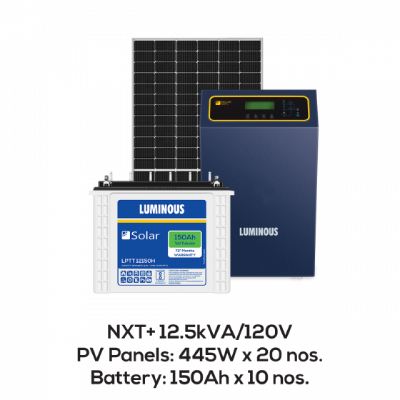

Solar Off Grid Combo – 12.5 KVA (BIS Certified)

Solar PCU – NXT+ 12.5 kVA

  • Rated AC power – 230V (Single Phase)
  • Max Supported Panel Power – 10kW
  • Input Voltage Range: Voc – 180V-300V (extracts upto 30% more power from Panels), Vmp – 150V-240V
  • Charge Controller – MPPT
  • Nominal Battery Bank Voltage – 120V (Supports 10 Batteries)

Pure Sine Wave Output

Solar Battery – LPTT12150H

  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty – 72 Months
  • Tubular plate Technology – Next generation tall tubular battery with better charge acceptance and longer backup
  • No of Batteries in Combo – 10

Solar Panel – 445W/24V

  • Capacity – 445W, 24V, Mono PERC Solar Panel
  • Voltage: Voltage at Max Power (Vmp) – 39.40V, Open Circuit Voltage (Voc) – 47.28V
  • Current: Current at Max Power (Imp) – 10.03A, Short Circuit Current (Isc) – 10.57A
  • 25 years performance warranty.
  • No of Panels in the Combo – 20.
Enquire Now
Categories: ,

Solar PCU – NXT+ 12.5 kVA

  • Luminous Solar PCU NXT+ 12.5 kVA is a BIS certified solar PCU which is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.



Solar Battery – LPTT12150H (150Ah)

  • Luminous 150Ah solar battery is a BIS certified C10 rated deep cycle battery which is specially designed for longer back up. It comes with a very low maintenance requirement and can handle extreme weather conditions assisting to achieve high temperature performance.



Solar Panel – 445W/24V

  • Luminous 445W/24V Mono PERC half-cut solar panel is a BIS certified solar panel which is suitable for a wide range of applications. It comes with an additional back layer etching which helps the solar cells to absorb reflected or scattered sunlight which leads to increase in overall panel efficiency.
Online Availability Yes
Online Availability Message Available Online
Buying Guide Buying Guide
Net Weight (Kg) Inverter- 150 kg, Battery- 60 kg (filled weight), Panel- 22.5 kg
Warranty Inverter- 24 months, Battery- 72 months, Panel- 25 years (performance)
Wattage (Wp) 445W
Open Circuit Voltage, Voc (V) 47.16V
Capacity 150Ah
Maximum Power Voltage Vmp (V) 39.33V
Short Circuit Currrent, Isc (A) 10.26A
Product Dimensions (L*W*H) Inverter- 40.0L*57.5B*78.3H CM, Battery- 50.2L*19.1B*44H CM, Panel- 197.6L*99.1B*3.5T CM
Max. supported panel power (Wp) 10000W
