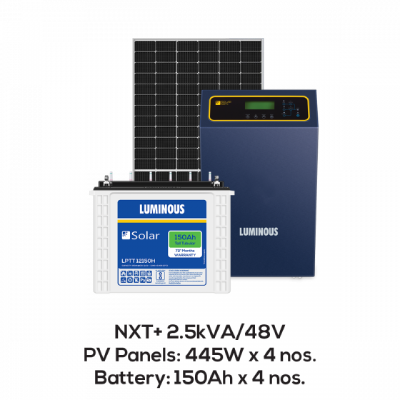

Solar Off Grid Combo – 2.5 KVA

Home UPS / Inverter – NXT 2.5 kVA

• Rated AC power – 230V, 8.5A, Single phase
• Max Supported Panel Power -2000Wp, Input Voltage Range (Vmp) – 65-130
• Charge Controller – MPPT, Input Voltage (Voc) 80-165 (extracts upto 30% more power from Panels)
• Nominal Battery Bank Voltage – 48V (Supports 4 Batteries)

Solar Battery – LPTT12150H

• 150 Ah Rated Capacity @ C10, 12V
• Warranty – 72 Months
• Tubular plate Technology
• No of Batteries in Combo – 4

Solar Panel – 445W / 24V

• Capacity – 445 W, 24V, Mono PERC half-cut Solar Panel
• Voltage: Voltage at Max Power (Vmax) – 39.40V, Open Circuit Voltage (Voc) – 47.28V
• Current: Current at Max Power (Imp) – 10.03A, Short Circuit Current (Isc) – 10.57A
• 25 years performance warranty
• No of Panels in the Combo – 4
