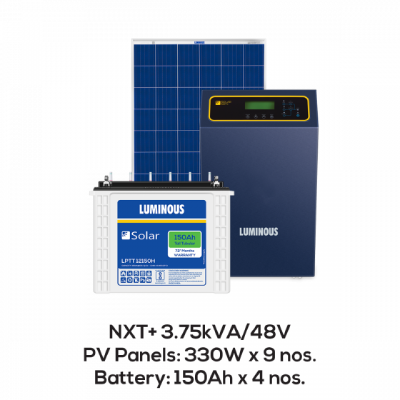

Solar Off Grid Combo – 3.75 KVA

Home UPS / Inverter – NXT+ 3.75KVA

  • Rated AC power – 230V, 13A, Single phase
  • Max Supported Panel Power -3000Wp, Input Voltage Range (Vmp) – 65-130
  • Charge Controller – MPPT, Input Voltage (Voc) 80-165 (extracts upto 30% more power from Panels)
  • Nominal Battery Bank Voltage – 48V (Supports 4 Batteries)

    Solar Battery – LPTT12150H

  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty – 60* Months
  • Tubular plate Technology
  • No of Batteries in Combo – 4

Solar Panel – 330W / 24V

  • Capacity – 330W, 24V, Polycrystalline Panel
  • Voltage: Voltage at Max Power (Vmax) – 38.03V, Open Circuit Voltage (Voc) – 45.53V
  • Current: Current at Max Power (Imp) – 8.68A, Short Circuit Current (Isc) – 9.22A
  • 25 years performance warranty
  • No of Panels in the Combo – 9
Enquire Now
Categories: ,

Home UPS / Inverter – NXT+ 3.75KVA

  • Rated AC power – 230V, 13A, Single phase
  • Max Supported Panel Power -3000Wp, Input Voltage Range (Vmp) – 65-130
  • Charge Controller – MPPT, Input Voltage (Voc) 80-165 (extracts upto 30% more power from Panels)
  • Nominal Battery Bank Voltage – 48V (Supports 4 Batteries)

    Solar Battery – LPTT12150H

  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty – 60* Months
  • Tubular plate Technology
  • No of Batteries in Combo – 4



Solar Panel – 330W / 24V

  • Capacity – 330W, 24V, Polycrystalline Panel
  • Voltage: Voltage at Max Power (Vmax) – 38.03V, Open Circuit Voltage (Voc) – 45.53V
  • Current: Current at Max Power (imax) – 8.68A, Short Circuit Current (isc) – 9.22A
  • 25 years performance warranty.
  • No of Panels in the Combo – 09.
Technology Tubular
Online Availability Yes
Online Availability Message Available Online
Buying Guide Buying Guide
Net Weight (Kg) Inverter – 50 kg, Panel – 20 kg
Country of Origin India
Listing Description

UPS: NXT 3.75 kVA/48V

PV Panel: 330 W x 9 No.s

Battery: 150 Ah x 4 No.s
Technology (Solar) With Battery
Warranty Battery warranty – 60 months, Inverter warranty – 2 years
Download Product Catalog Download Product Catalog
Wattage (Wp) 330 W
Open Circuit Voltage, Voc (V) 37.5
Maximum Power Current , Imp (A) 8.57
Capacity 150 Ah
Maximum Power Voltage Vmp (V) 31.5
Panel Type PolyCrystalline
Short Circuit Currrent, Isc (A) 9.3
Free Of Cost (in months) 60
Product Dimensions (L*W*H) Dimensions in mm: Inverter -“ 300x504x515, Panel -“ 991x1656x40
DC input Range (V) 60-130
Max. supported panel power (Wp) 3000
Rated AC power (W) 230V, 13A, Single phase
Usable current from grid (A) 30
Max Solar Panel Voltage (V) 31.5
Nominal DC 48
