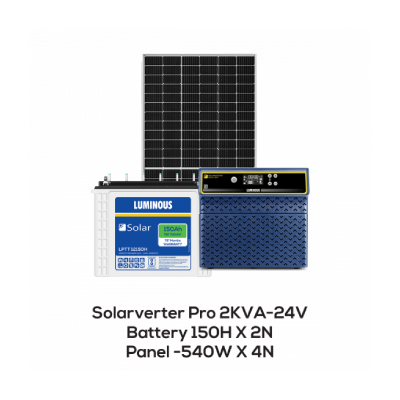

Solar Off-Grid Combo | Solarverter PRO 2 KVA/ 24 V, Solar Battery 150 Ah (2 Nos.), Solar Panel 540 W (4 No.S)

Solarverter PRO 2 KVA/ 24 V

  • Rated AC power – 230V (single phase)
  • Max Supported Panel Power – 2500 Wp, Input Voltage Range (Vmp) – 45V-85V
  • Charge Controller – MPPT, Input Voltage Range (Voc)- 57V-100V
  • Nominal Battery Bank Voltage – 24V
  • 24 Month Warranty
  • Pure Sine Wave Solar Inverter

Solar Battery – LPTT12150H

  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty – 72 Months
  • Tubular plate Technology – Next generation tall tubular battery with better charge acceptance and longer backup
  • No of Batteries in Combo – 2

Solar Panel – 540 W / 24 V

  • Capacity – 540W / 24V, Mono PERC half cut Solar Panel.
  • Voltage: Voltage at Max Power (Vmp) – 41.92 V, Open Circuit Voltage (Voc) – 49.40 V
  • Current: Current at Max Power (Imp) – 12.89 A, Short Circuit Current (Isc) – 13.72 A
  • 25 years performance warranty
  • No of Panels in the Combo – 4
Enquire Now
Categories: ,

Solarverter PRO 2 KVA/ 24 V

  • Luminous Solarverter 2 KVA/ 24 V allows smart management of Solar Power, Grid Supply and Battery to deliver uninterrupted power for all electrical applications. It is designed for high performance against the typically tough Indian grid conditions.



Solar Battery – LPTT12150H (150Ah)

  • Luminous 150Ah solar battery is a BIS certified C10 rated deep cycle battery which is specially designed for longer back up. It comes with a very low maintenance requirement and can handle extreme weather conditions assisting to achieve high temperature performance.



Solar Panel – 540 W/ 24 V

  • Luminous 540 W/ 24 V Mono PERC half-cut solar panel is a BIS certified solar panel which is suitable for a wide range of applications. It comes with an additional back layer etching which helps the solar cells to absorb reflected or scattered sunlight which leads to increase in overall panel efficiency.
Online Availability Yes
Online Availability Message Available Online
Buying Guide Buying Guide
Net Weight (Kg) Inverter- 25 kg, Battery- 60 kg (filled weight) Panel- 29 kg
Country of Origin India
Warranty Inverter- 24 months, Battery- 60 months, Panel- 144 Months
Wattage (Wp) 540 Wp
Open Circuit Voltage, Voc (V) 49.40 V
Capacity 150 H
Panel Type Mono PERC Half-Cut
Short Circuit Currrent, Isc (A) 13.72 A
Product Dimensions (L*W*H) Inverter- 30.0*41.7*45.2 CM, Battery- 50.2L*19.1B*44H CM, Panel- 227.9*113.4*3.5 CM
Max. supported panel power (Wp) 2500 Wp
Max Solar Panel Voltage (V) 41.92 V
